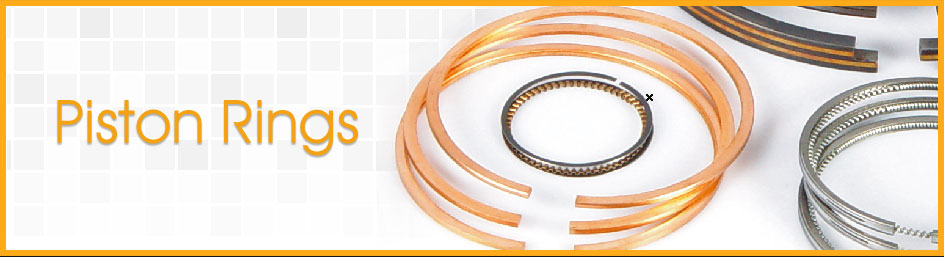

Piston Rings Manufacturers & Suppliers in India

piston rings manufacturers Grindlays is a recognized name among Piston Ring Suppliers in the Automotive Industry for supplying high quality Piston rings. Our piston rings have proven their capability to provide efficient combustion and reduce oil consumption in the engines. A piston ring is a simple ring on a piston that seals the gap between the piston and the cylinder wall. Piston Ring Manufacturers generally produces piston rings that are made of cast iron alloy or a high strength steel material which is reinforced with tin, copper or chrome. The rings should be capable enough to withstand temperatures of upto 300 degree Celsius inside an internal combustion engine and facilitate heat dissipation. Our Piston rings are made to help in heat dissipation, seal the combustion gases for improved engine power and hence better fuel efficiency.
There are three basic objectives that piston rings that they need to achieve depending on their placement on the piston.
The first ring or primary ring also called as the compression ring assists in preventing the gas from leaking out during the combustion process. The second ring or secondary ring assists the primary ring in keeping the pressure intact. The third ring also known as oil rings assists in keeping the engine cool by dissipating the oil around it. Each of these three rings have to work together optimally to give the combined functionally and a good output.

Range: Diameter 23mm to 400mm


  • Grey Cast Iron (Individual Casting)
  • Alloyed Cast Iron
  • Spheroidal Graphite Iron (Ductile Rings)
  • High Strength Steel


  • Perkerisation
  • Chrome Plating
  • Tin Coating
  • Copper Flash


Plain Compression Rings, Scrapper/Napier Rings, Slotted Oil Rings, Hard Chrome Plated Compression & Oil Rings, Taper Faced(Periphery) Rings, Full / Half Keystone Rings, Step Cut Rings, Slant Cut Rings, Lock Type Rings, Spring Loaded Oil Rings (with Helical Coil springs), Profile Grinded Oil Rings, Duaflex Oil Rings, Steel Laminated Segments, 3-Piece Nifflex Oil Rings(various designs), Steel Oil Rings, Bimetal Rings etc.

Quality Commitment

All the Grindtech Piston Rings produced are passed through stringest
tests such as :
  • Metallurgical analysis
  • Dimentional check
  • End Gap checking in hard guages
  • Hardness Test
  • Tangential Load test
  • Light Pass Test for Perfect Circularity
  • Profile check, Parallelism etc.
